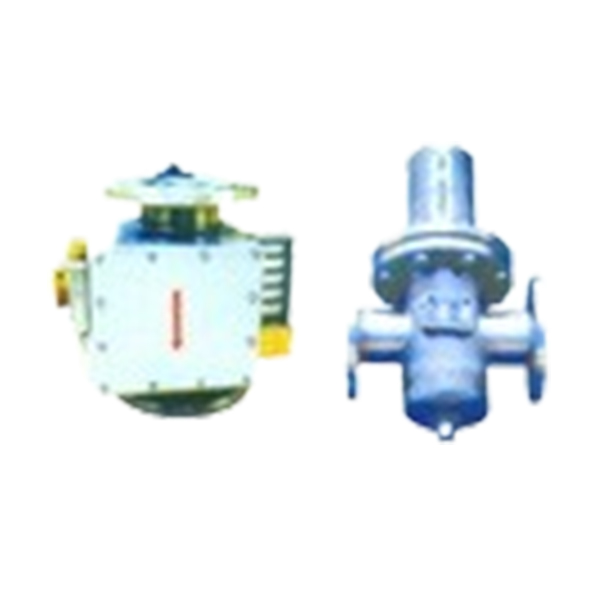

管道液位信號器適用于工業過程中各種輸液管道中液位的檢測和控制，可對復雜管略的輸液過程，管路中的液位情況，管路中液體的波動狀態進行自動化控制。管道液位信號器分水平和垂直兩種安裝形式。水平安裝式是由邏輯電路組成的二位式控制器．其切換值可在全量程內任意設定。開關輸出信號表示液位到達設定點與否。二點切換位置的切換差同樣能在全量程內調節。垂直安裝式是通過磁場一浮球機構組成，在管道溢流時，既可直觀顯示，又可輸出報警信號。
Pipe level signal meters are suitable for the detecting and controlling of the liquid in pipes. Tht liquidtransmitting process,level and the wave state in complex pipes may be controlled automatically.They are divided into horizontal and vertical by installation method.Horizontal type is "2-psints"controller by logic circuit,the two points of level can be preset at while measure range.The difference between the two levels can be adjustde too.Theoutput signal repesent that the level comes to the preset or not.Vertical type pipelevel signal meter could been viewed and alarm immediately by magnet-float mechanism in overflow pipe.
主要技術參數 Main technical parameters
| 工作壓力Working pressure | 0.1Mpa |
| 實驗壓力Testing pressure | 0.15Mpa |
| 觸點容量Contact capacitance | 220VAC 1A |
| 介質粘度Medium viscosity | ≤0.02Pa.s |
| 電源工作壓力Power supply | 24VDC 30W |
| 連接法蘭 | GB2506-89 0.6Mpa |
